Concrete Pump Tungsten Carbide Cutting Ring DN200/230/260

Place of Origin : China

MOQ : 1

Price : $68-72

Material : Tungsten carbide, Alloy

Type/Size : DN200/230/260

Carbide thickness : 15+5mm / 15mm

Item no. 200 : 590654/590660

Item no. 230 : 500012/590129

Item no. 260 : 500008/590165

Weight 200 : 7.92 kgs

Weight 230 : 8.3 kgs

Weight 260 : 8.1 kgs

Carbide hardness : HRA ≥85

Electrode hardness : HRC ≥65

MOQ : 1 piece

Delivery time : 5-15 days

Application : Concrete Pump, Boom Pump, Trailer pump

Quality standard : OEM Standard

Contact Now

Product Description

Concrete pump tungsten carbide spectacle cutting rings

Dual carbide 15+5mm / Single carbide 15mm for choices

Concrete Pump Tungsten Carbide Cutting Ring DN200/230/260

item no./size	weight(kgs)	Material
590654/590660(200)	7.92	Carbide HRA：≥85 Electrode HRC：≥65
500012/590129(230)	8.3	Carbide HRA：≥85 Electrode HRC：≥65
500008/590165(260)	8.1	Carbide HRA：≥85 Electrode HRC：≥65

How to increase service life of concrete pump spectacle wear plate and cutting ring
When the pump is in operation, the basic causes of wear resulted due to the following 3 actions on cutting rings and spectacle plate.
1. Friction created while rubbing away on wear parts.

2. Impact stress due to intentional back pressure created for better sealing.

3. By the concrete due to the flow. To reduce the maintenance cost, we suggest to use carbide type and change wear ring position after working for a period of time.

Packing & Delivery

Company Profile

Hunan Jiancheng Technology Co., Ltd. is focusing on the R&D, manufacturing and marketing of Mechanical Components and Spare Parts for Concrete Machinery.

You can get ONE-STOP purchasing services at Jiancheng.

Our Clients

Certifications

Our Advantages

Product Tags:

concrete pump tungsten carbide ring

DN200 concrete pump cutting ring

concrete batching plant carbide ring

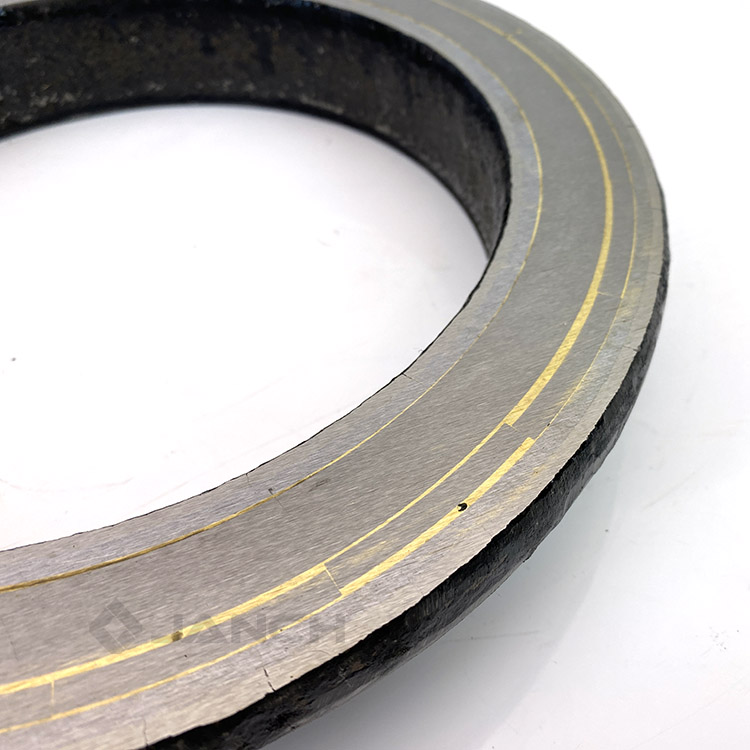

Concrete Pump Tungsten Carbide Cutting Ring DN200/230/260 Images
